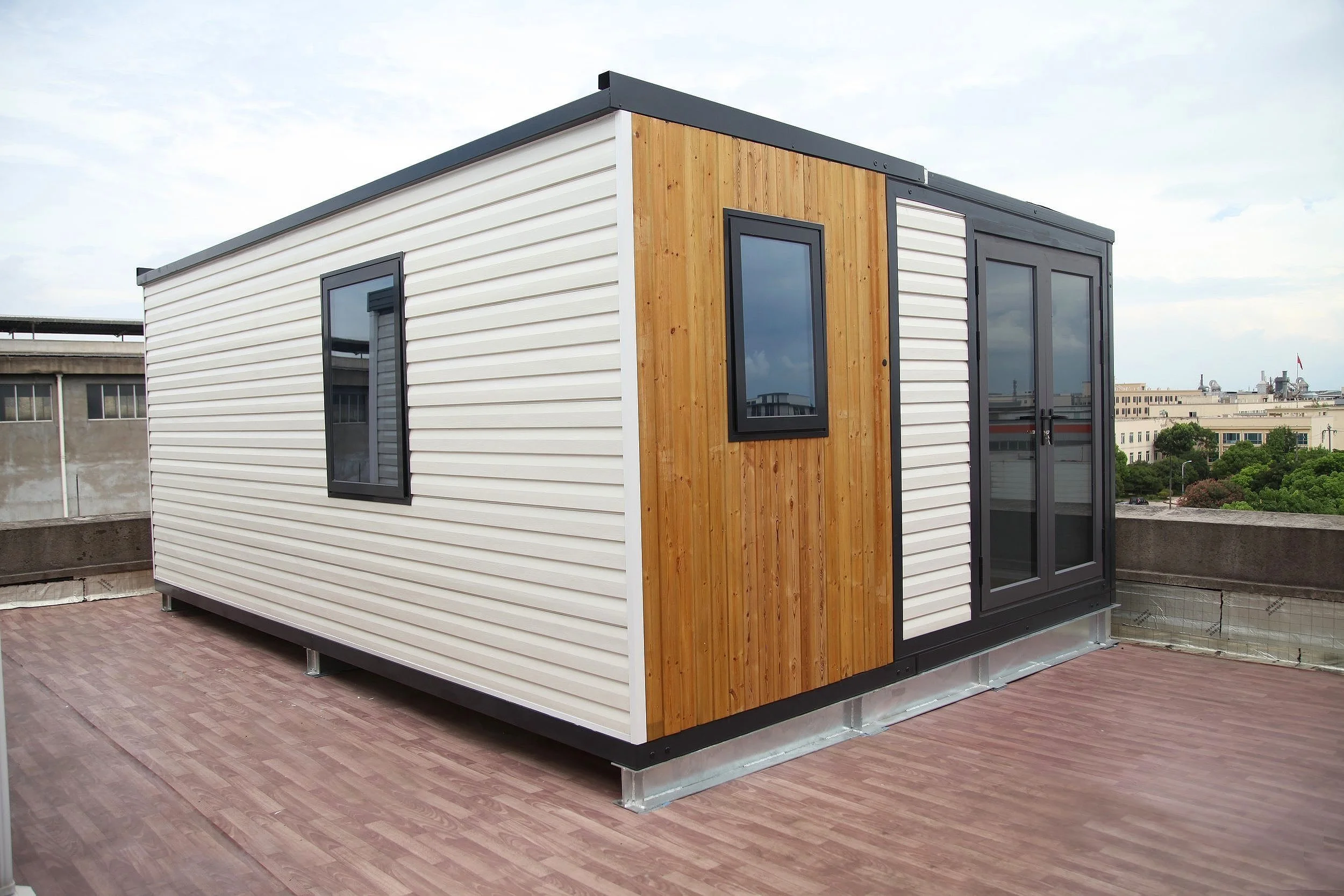

26 m2 Pod Details

Area of the house is 26㎡, one floor. The indoor height is 2.3m.

• Length: 4270mm

• Width: 5980mm

• Height: 2650mm

Floor - Applied 100*80 steel frame (Q355, wall thickness 2.5mm), the square

tube is galvanzied and sprayed with plastic. 0.426mm Colored Steel Sheet (Surface AZM100g/m2+PE coated 20/5um)+ Steel Frame

+ Filled with 100mm PU for insulation + 8mm PVC (Width 1200mm).

Front and Back Wall of the General Kitchen and Bathroom Module - Applied 80*80 steel frame (Q355, wall thickness 2.5mm), the square

tube is galvanzied and sprayed with plastic. 7.5mm Plank（surface is brushed with 500g/m2 wood oil）+ Steel Frame + 80mm PU +

9mm Bamboo and Wood Fiberboard (Width 600mm).

Side Wall of the General Kitchen and Bathroom Module - Applied 80*80 steel frame (Q355, wall thickness 1.5mm) is

galvanzied and sprayed with plastic. 27mm Craved Metal Board + 9mm OSB Board + Steel Frame + 50mm Glass• Wool + 9mm

OSB Board + 9mm Bamboo and Wood Fiberboard (Width 600mm).

Partition Wall of the General Kitchen and Bathroom Module - Applied 50*50 steel frame (Q355, wall thickness 1.5mm) is

galvanzied and sprayed with plastic. 9mm Bamboo and Wood Fiberboard (Width 600mm) + 9mm OSB Board + Steel Frame. 50mm Glass Wool + 9mm OSB Board + 9mm Bamboo and Wood Fiberboard (Width 600mm).

Ceiling Board - Applied 80*80 steel frame (Q355, wall thickness 2.5mm),the square tube is galvanzied and sprayed with plastic. 0.426mm Colored Steel Sheet (Surface AZM100g/m2+PE coated 20/5um)+ Steel Frame + 80mm PU + 9mm Bamboo and Wood Fiberboard (Width 600mm).

Foldable Walls - Applied 75*68 (convex 18) frame (wall thickness 1.8mm), and sprayed with plastic. 27mm Craved Metal Board + Steel Frame +75mm PU + 9mm Bamboo and Wood Fiberboard (Width 600mm)

Doors - Aluminum Alloy Double Do, Wooden Single Door with Steel Frame

Windows - Aluminum Casement Window/Top-Hung Window

Furniture - L-Shaped Cabinet (Floor Cabinet included) *1, Demaned Water Heater *1, Closet *1

Sanitary - Procelain Toilet *1, Wash Basin *1, Shower Room *1, Bathroom Heat Lamp *1

Electricity - Australia Standard Electricity
